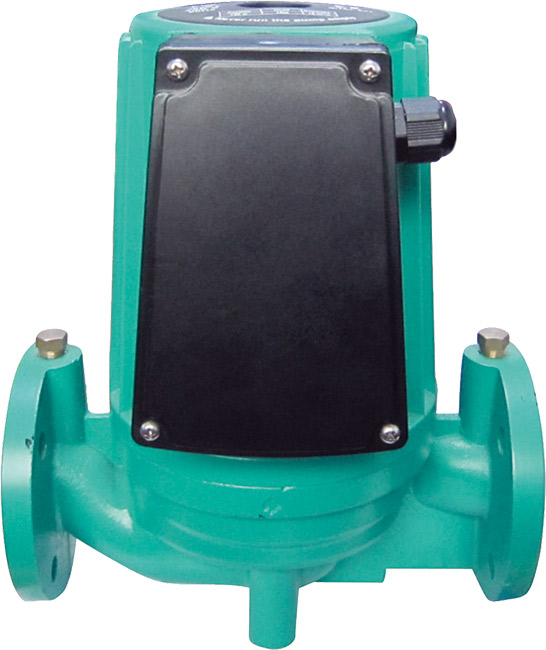

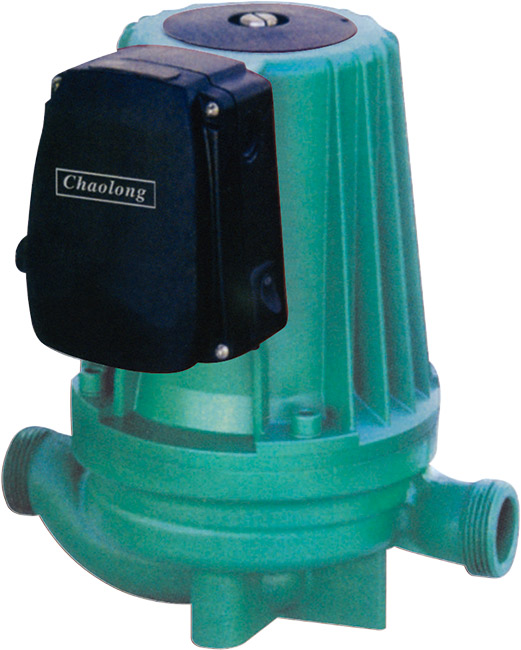

Cold and hot water circulation booster pump
Cold and hot water circulation booster pump
25PBG-11
25PBG-16
25PBG-18
25PBG-21
25/32PBG-11
25/32PBG-16
25/32PBG-18
25/32PBG-21
25PBG-16
25PBG-18
25PBG-21
25/32PBG-11
25/32PBG-16
25/32PBG-18
25/32PBG-21

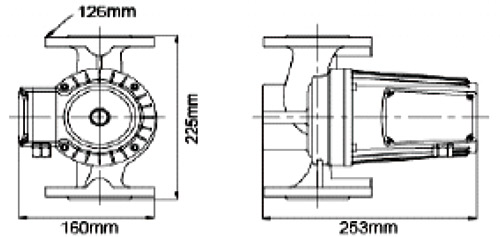

Installation size (mm)

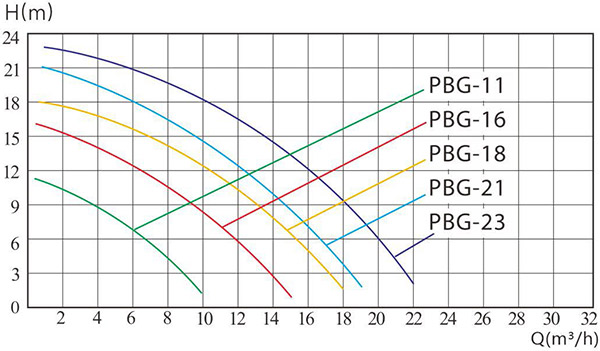

Performance Curve
Technical Parameter
| Model | Power (w) | voltage (V) | frequency (Hz) | Outlet (mm)(In) | speed (r/min) | Max.Head (m) | Max.Flow (L/min) | weight (Kg) | Number (tower) | Car.size(cm) | ||
| long | wide | tall | ||||||||||
| PBG-11 | 370 | 220 | 50 | 25/32(1"/1?") | 2800 | 11 | 10 | 14.2 | 1 | 23.5 | 18.5 | 28 |
| PBG-16 | 550 | 220 | 50 | 25/32(1"/1?") | 2800 | 16 | 15 | 15.2 | 1 | 23.5 | 18.5 | 28 |
| PBG-18 | 750 | 220 | 50 | 25/32(1"/1?") | 2800 | 18 | 18 | 21.5 | 1 | 27.5 | 24.5 | 31.5 |
| PBG-21 | 1100 | 220 | 50 | 25/32(1"/1?") | 2800 | 21 | 19 | 22.2 | 1 | 27.5 | 24.5 | 31.5 |
| PBG-23 | 1500 | 220 | 50 | 25/32(1"/1?") | 2800 | 23 | 22 | 22.8 | 1 | 32.5 | 23.5 | 33 |
